MD Brand,Model:CBD Series,Capacity:1000-2000kg,Max.Lift Height:1.6--4m
MD Brand,Semi Electric Pallet Stacker，Shipping Term:EXW,FOB,CIF ,DDP,MOQ:1Unit,Packaging:Bubble Wrap and Pallet,Delivery time:After Payment 15days.

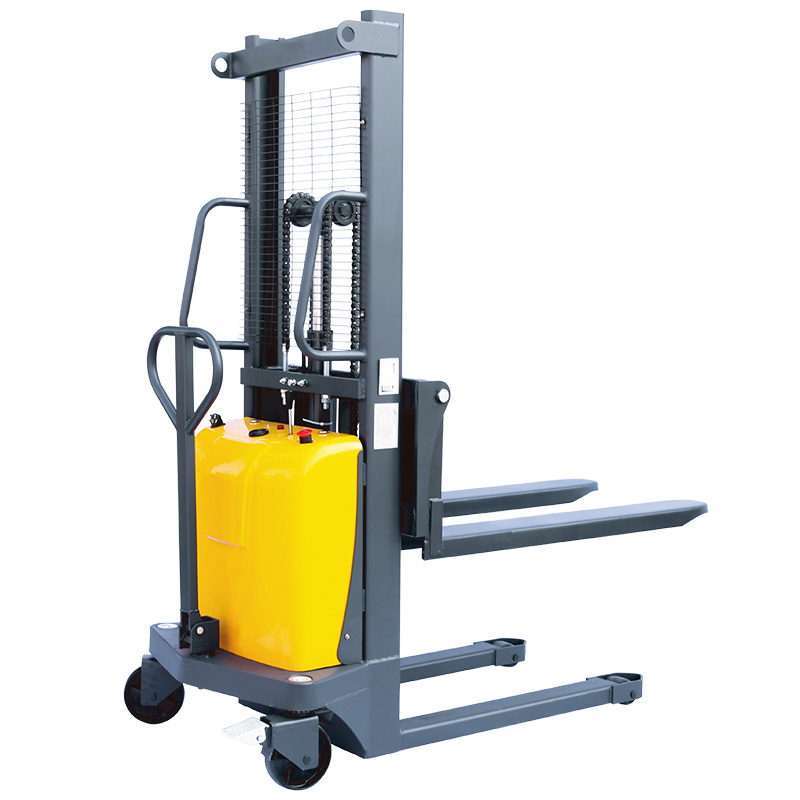

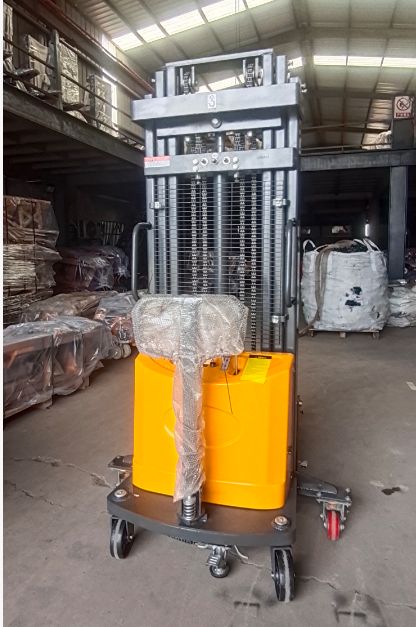

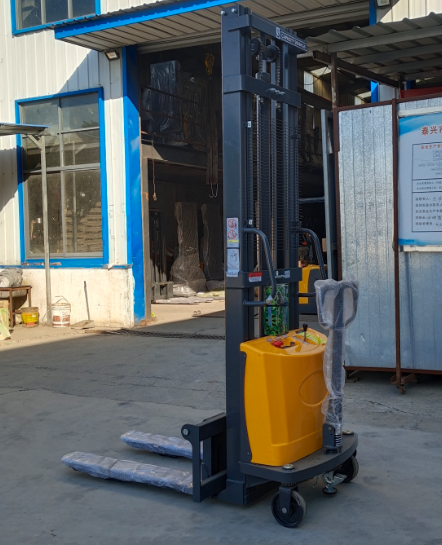

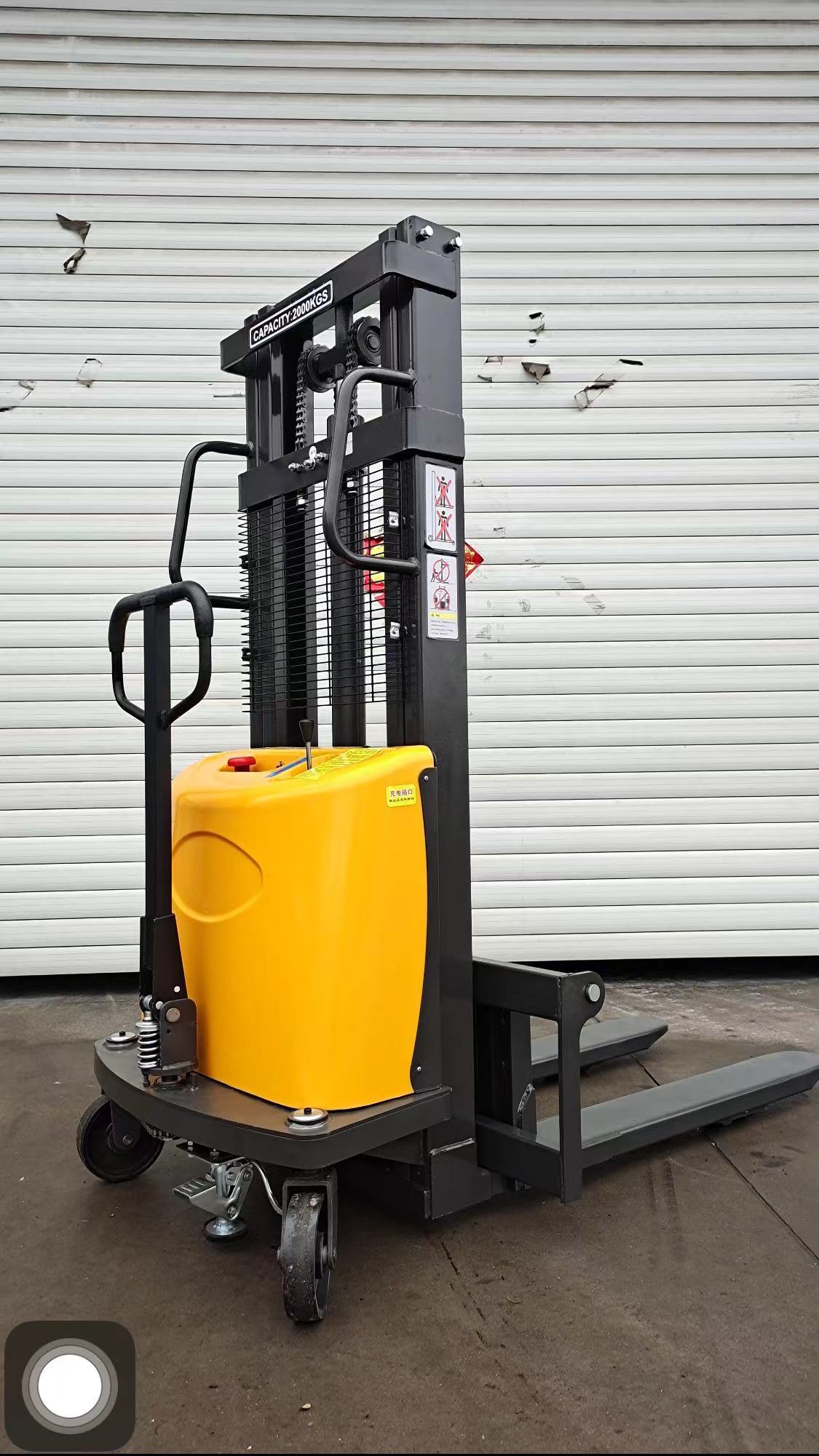

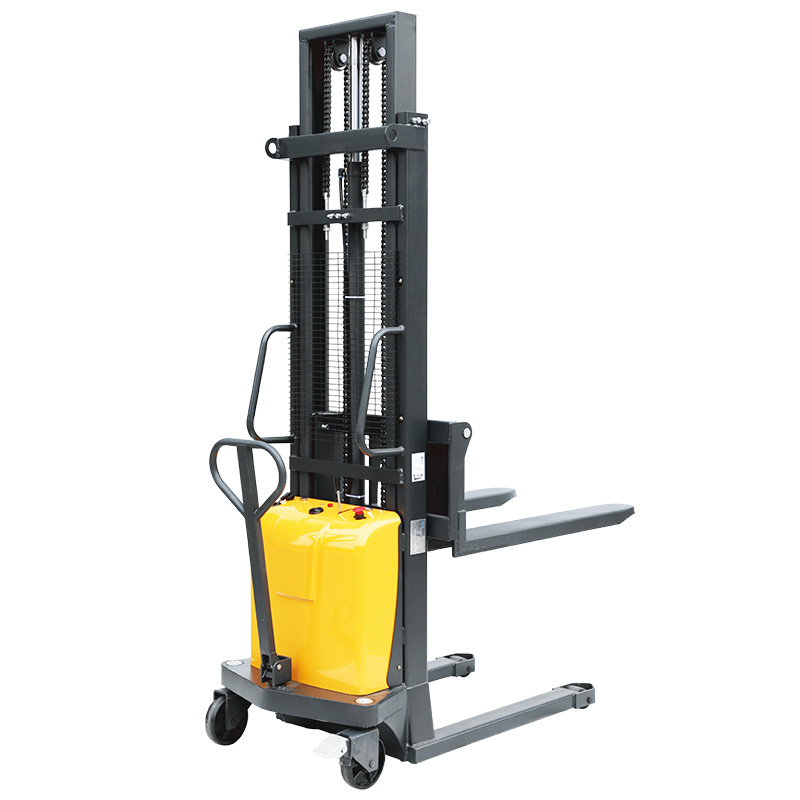

Semi Electric Pallet Stacker
1. Easy operation: semi-electric stacker combines manual and electric operation, lifting and falling are usually controlled by electric power, and the movement relies on manpower to promote, reducing the labor intensity of the operator.
2. Cheaper and more economical than electric stackers.
3. Low maintenance and repair costs.
4. It is suitable for operation in narrow space and improves the efficiency of warehouse space.
5. Equipped with safety devices, such as emergency stop button, overload protection, etc., to ensure safe operation.
|
MODEL |
CBD1016/CBD1020/CBD1025/CBD1030/CBD1035/CBD1040 |
|
|
CBD2016/CBD2020/CBD2025/CBD2030/CBD2035/CBD2040 |
|
Capacity:kg |
1000/2000 |
|
Max.lift height:mm |
1600/2000/2500/3000/3500/4000 |
|
Min.height:mm |
50 |
|
Closed height:mm |
2080/1580/1830/2080/2350/2300 |
|
Fork length:mm |
1100 |
|
Battery :v/AH |
12/103 |
|
Lift motor:kw |
1.6 |
|
Net.weight:kg |
300/360/370/380/395/410 https://youtube.com/shorts/-as1Pb1-4Xk?si=4oWCwgVVW7jSXPft |
