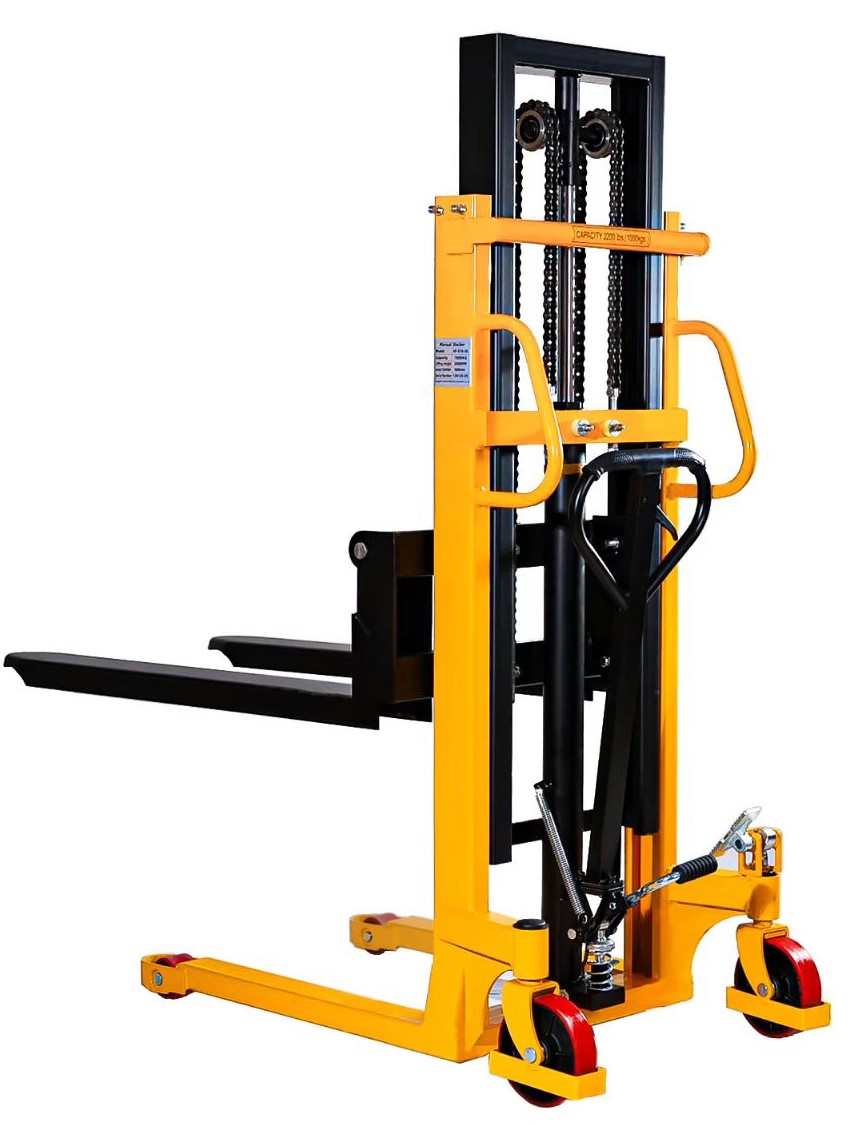

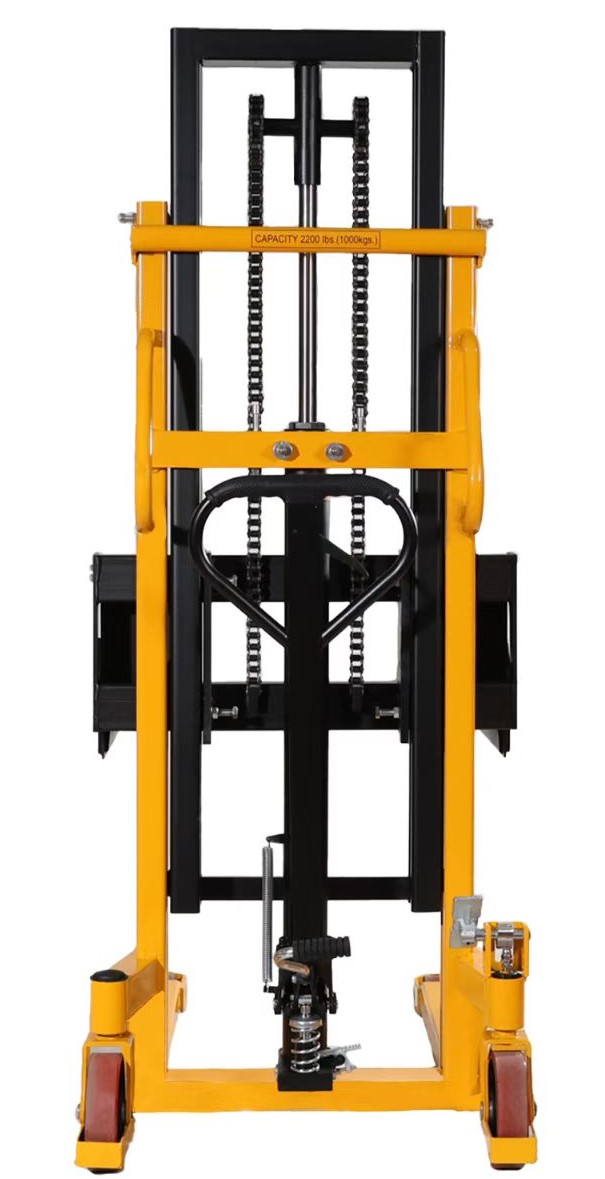

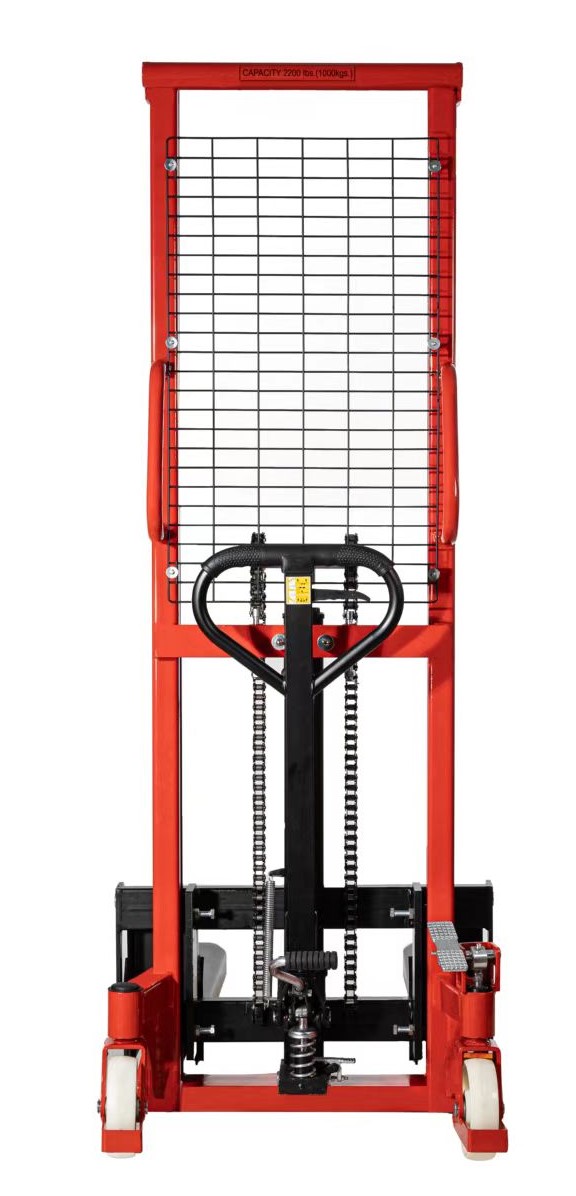

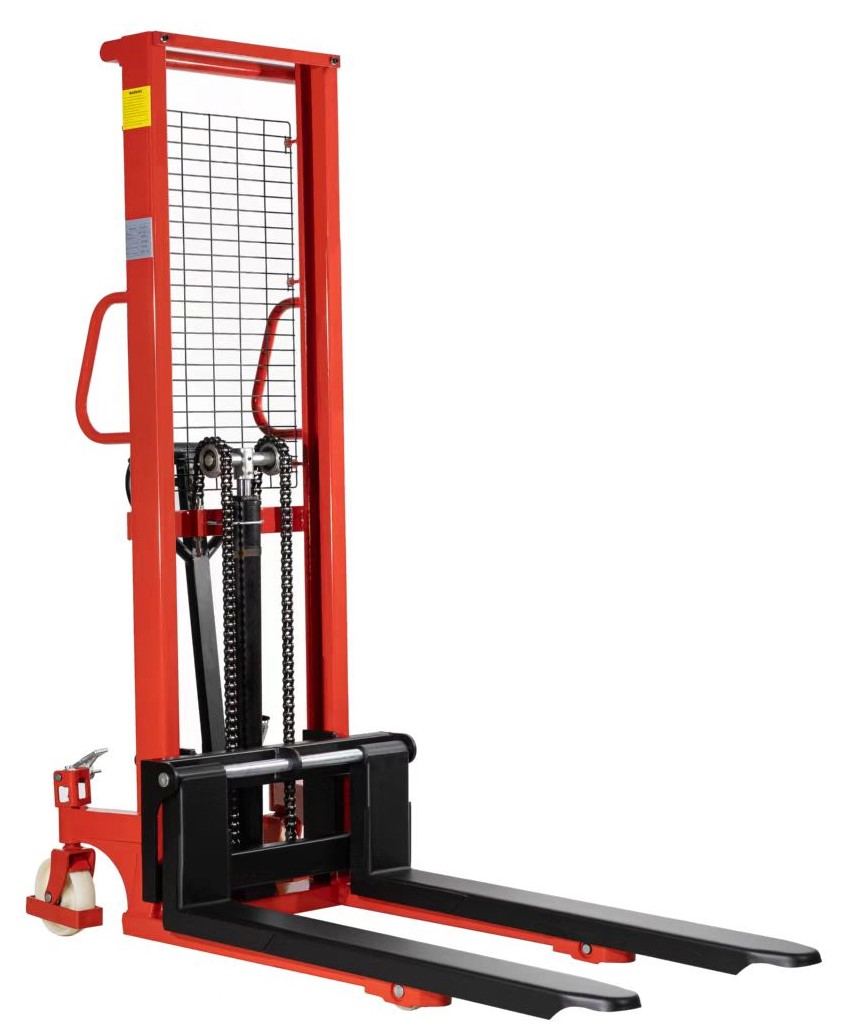

Manual Pallet Stacker

MD Brand, Model:HC series,Capacity:1000/1500kg ,Max.Lift Height:1.6-3.5m

MD Brand,Manual Pallet Stacker,Pyment Term:100%Payment before Shippment,MOQ:1unit,Delivery Time:After Payment15days.Packing with Pallet

Manual Pallet Stacker

Model		HC1016	HC1020	HC1025	HC1030	HC1516	HC1520	HC1525	HC1530
Capacity	Q kg	1000				1500
Load center	C mm	400
Front suspension distance	X mm	615
Wheelbase	Y mm	980
Mast closed height	h1 mm	1960	1530	1780	1960	1960	1530	1780	1960
Fork lift height	h3 mm	1600	2000	2500	3000	1600	2000	2500	3000
Height of the mast extension	h4 mm	1960	3530	3780	4030	1960	3530	3780	4030
The height of the forks descent	h13 mm	90
Overall length	l1 mm	1615
Overall width	b1 mm	735
Fork size	s/e/l mm	135/55/1150
Fork outer width	b5 mm	290-680
Turning radius	Wa mm	1134.5
Net.weight	kg
Big wheel		Nylon（PU）180x50
Small wheel		Nylon（PU）80x60

Notice：The guide rails are made of Q345 high-strength 10# C-shaped steel, with a thickness of 6mm.

The 1.5-ton support arm is made of 80x60x5 rectangular tubes.

Model		HC2016	HC2020	HC2025	HC2030
Capacity	Q kg	2000
Load center	C mm	400
Front suspension distance	X mm	608
Wheelbase	Y mm	1000
Mast closed height	h1 mm	2080	1650	1900	1080
Fork lift height	h3 mm	1600	2000	2500	3000
Height of the mast extension	h4 mm	2080	3580	3830	4080
The height of the forks descent	h13 mm	90
Overall length	l1 mm	1540
Overall width	b1 mm	767
Fork size	s/e/l mm	150/50/1150
Fork outer width	b5 mm	320-680
Turning radius	Wa mm	1160
Net.weight	kg
Big wheel		Nylon（PU）180x50
Small wheel		Nylon（PU）80x60 https://youtube.com/shorts/I71ZRTw4Ck8?si=6CQH6mG6enu3zCWP

Notice：The guide rails are made of Q345 high-strength 12# C-shaped steel, with a thickness of 6mm.
