MD Brand/Model:CPD Series/Capacity:1000-1500kg/Max.Lift Height:1.6--3.5m
MD brand Stand on Counter Balanced Stacker,Pyment Term:100%Payment before Shippment,MOQ:1unit,Delivery Time:After Payment15days.Packing with Pallet

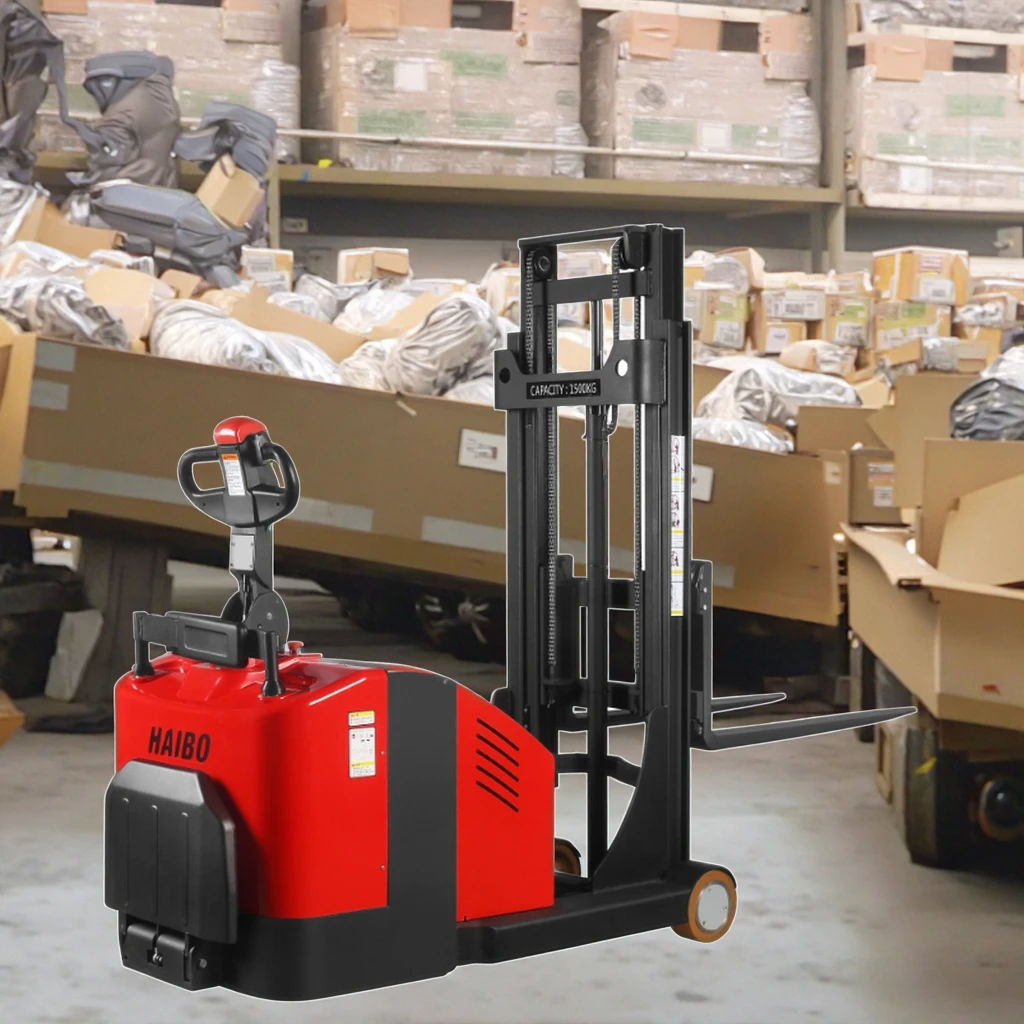

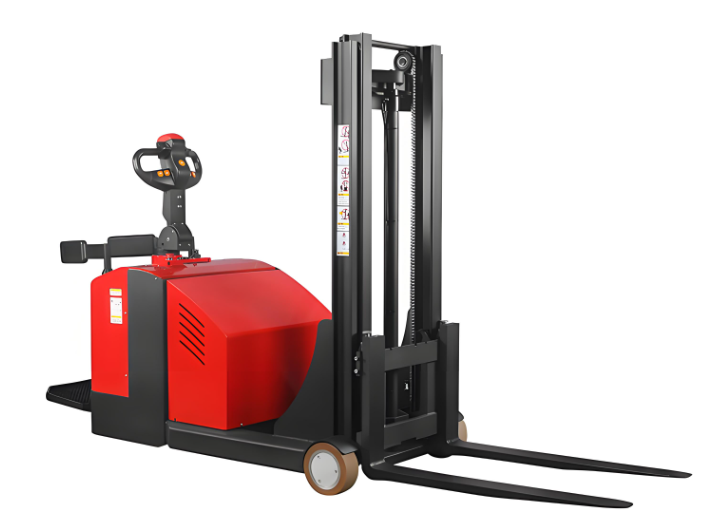

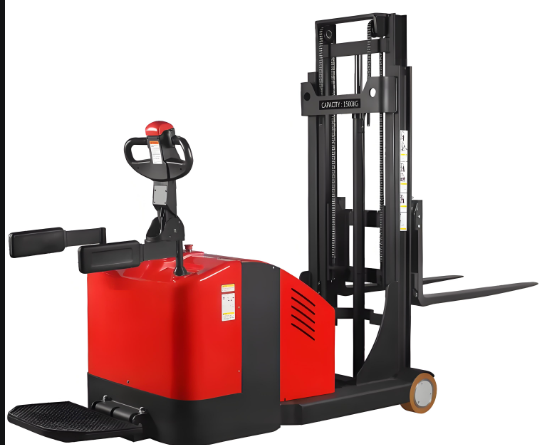

Stand on Counter Balanced Stacker
Stand on Counter Balanced Stacker
Stand on Counter Balanced Pallet Stacker, Stand-up Counterbalance Stacker, Stand-on Counterbalance Forklift Stacker, Counterbalance Stacker with Stand-on Platform站驾式平衡重堆垛车
1.The no-leg design allows for the use of various trays.
2. The whole machine design is compact, compact, small turning radius, good bend passing
3. Dc brushless drive motor, excellent handling performance. Low energy consumption and long driving range
4.The forks can be equipped with the function of tilting forward and backward.
|
MODEL |
CPD1016(1516)/CPD1020(1520)/CPD1025(1525)/CPD1030(1530)/CPD1035(1535) |
|
|
|
Capacity:kg |
1000/1500 |
|
|
|
Max.lift height:mm |
1600/2000/2500/3000/3500 |
|
|
|
Load center:mm |
500 |
|
|
|
Fork length:mm |
1150 |
|
|
|
Fork outer width:mm |
685/550 |
|
|
|
Lift motor:kw |
2.2 |
|
|
|
Drive motor:kw |
2.2 |
|
|
|
Battery:V/AH |
24/210 |
|
|
|
Brake |
Electromagnetic braking |
|
|
|
Climb ability(load/unload)% |
5/10 |
|
|
|
Turning radius:mm |
1600 |
|
|
