Model :CPD Series/Capacity:1000-2000kg/Max.Lift Height:3m--6m
MD Electric Forklift, Series,Model :CPD Series,Shipping Term:EXW,FOB,CIF ,DDP,MOQ:1Unit,Packaging: Bubble Wrap and Pallet,Delivery time:After Payment 15days.

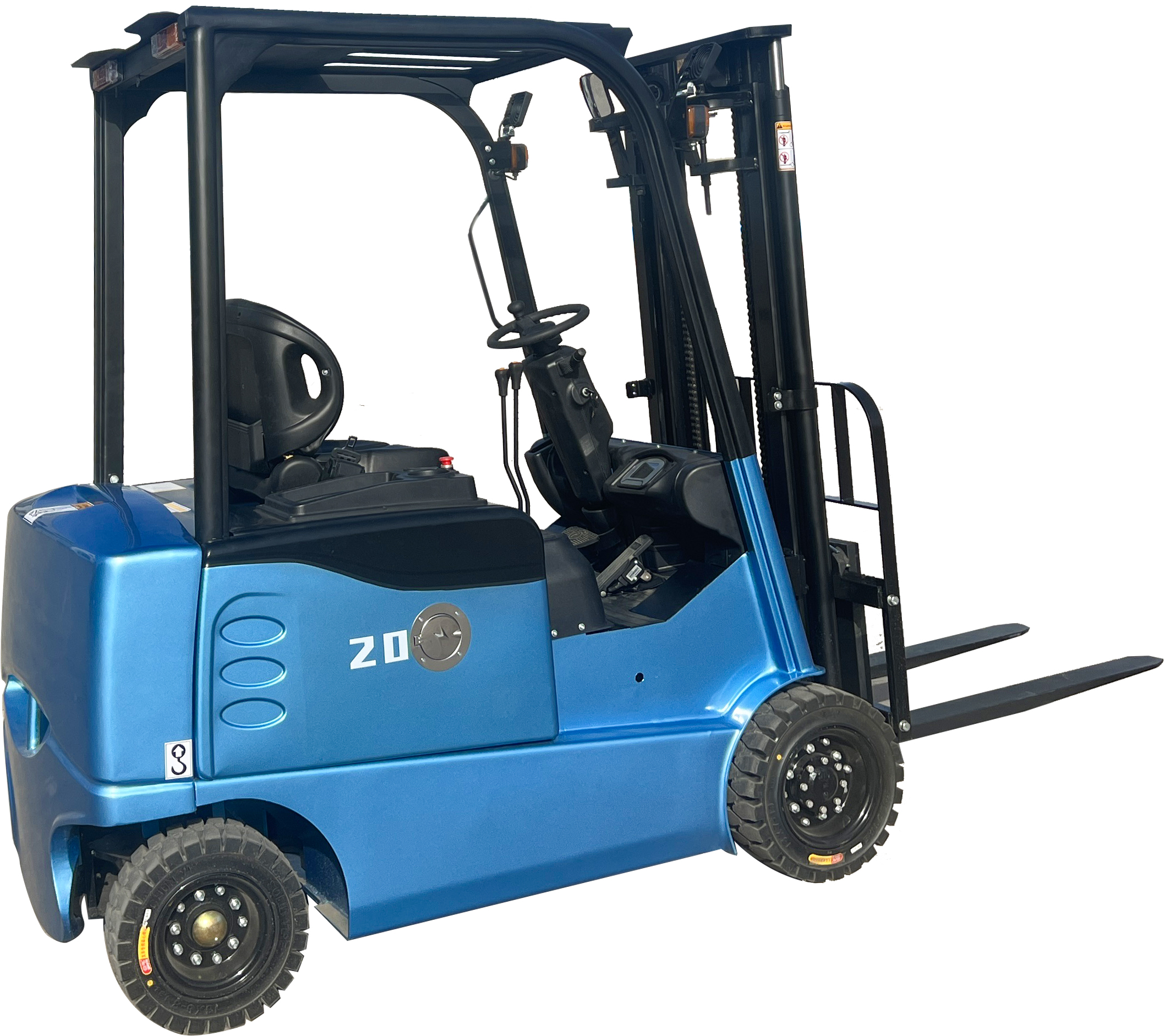

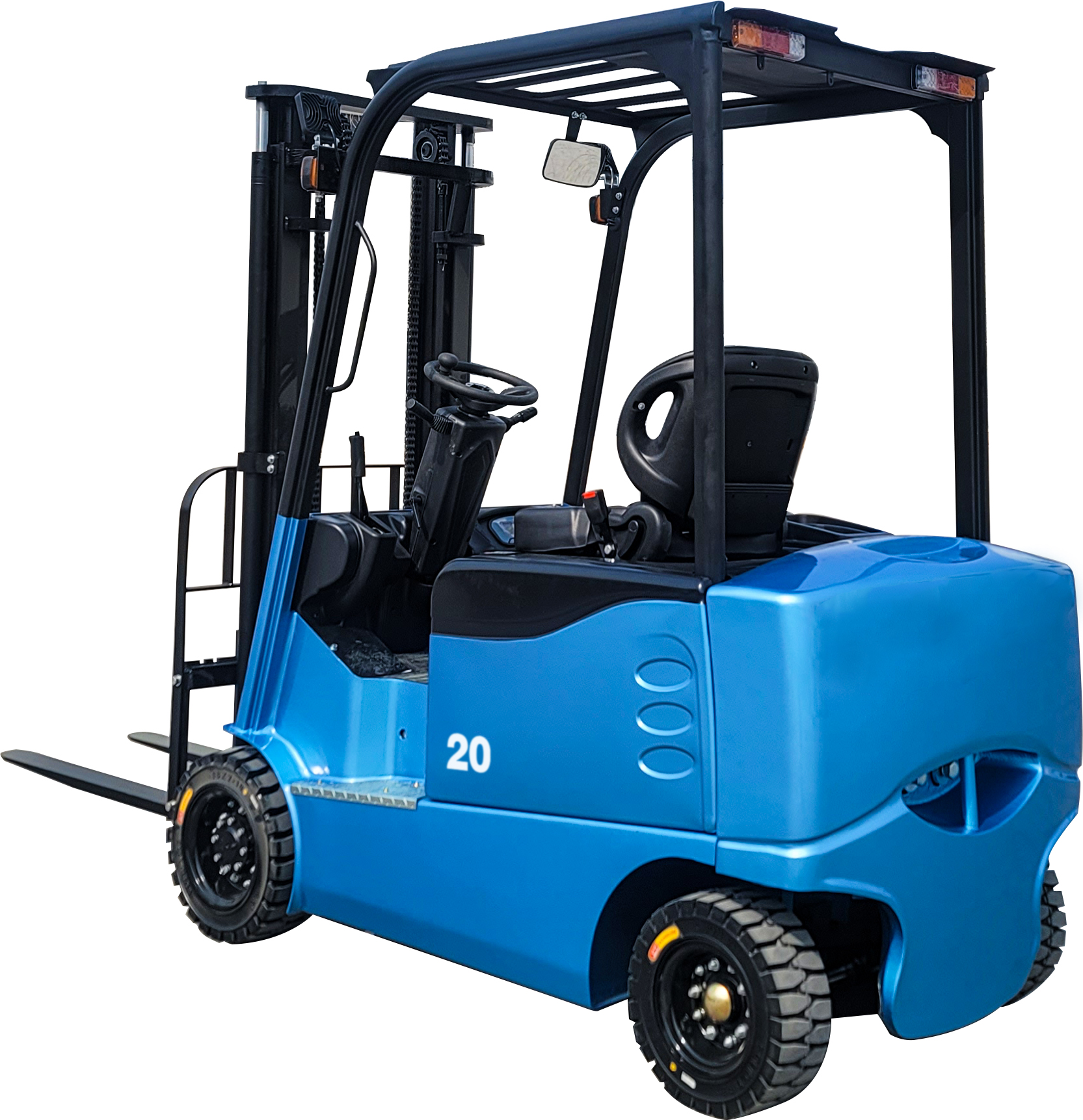

Electric Forklift
ELECTRIC FORKLIFT
1. Using a completely new concept of appearance design methods,the truck body has clear lines and folds on the side,with flexible lines in direction and strong visual tension.
2. Using advanced large screen LED meters, with power display meters,timetables,and fault self-diagnosis functions,it can accurately display in harsh environ-ments.
3. The wide field of view gantry with optimized design is not easy to block the operator’s line of sight.the opening size of the fork rack is enlarged,and the field of view is wide.

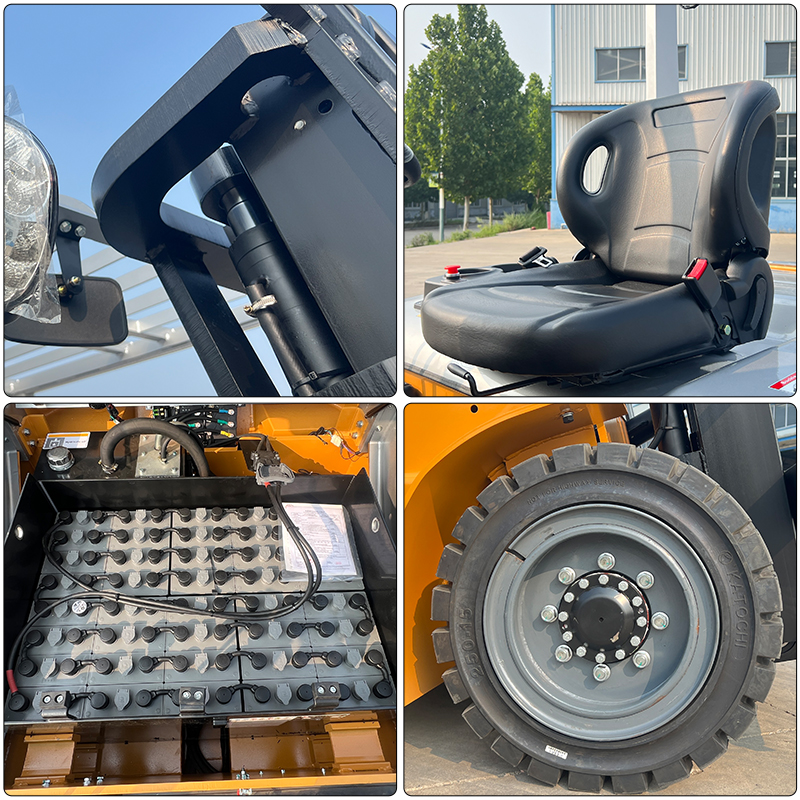

4. The drive motor adopts and advanced parallel arrangement method,and the battery sinks to the bottom of the frame,providing good stability.
Model
Unit
CPD10
CPD15
CPD20
CPD25
CPD30
CPD35
CPD40
CPD45
CPD50
Max.load capacity
kg
1000
1500
2000
2500
3000
3500
4000
4500
5000
Max.lifting height
mm
3000
3000
3000
3000
3000
3000
3000
3000
3000
Load center
mm
500
500
500
500
500
500
500
500
500
Turning radius
mm
2050
2280
2280
2370
2300
2300
2700
2700
2700
Truckbodylength(forkexcluded)
mm
1890
2230
2230
2390
2680
2680
2990
2990
2990
Truckbody width
mm
1020
1100
1100
1100
1225
1225
1585
1585
1585
Overhead guardheight
mm
1860
2110
2110
2110
2200
2200
2350
2350
2350
Overall height ,mast lowered
mm
2017
2030
2030
2030
2057
2057
2340
2340
2340
Overall height ,mast extended
mm
3957
4055
4055
4055
4200
4200
4220
4220
4220
Fork size（L*W*H）
mm
1070*100*30
1070*100*35
1070*100*40
1070*100*40
1070*122*45
1070*122*45
1070*145*50
1070*150*50
1070*150*55
Ground clearance under mast
mm
77
88
88
88
82
82
160
160
160
Tyre size(front)
mm
15*41/2-8
18*7-10
18*7-10
6.5-10
28*9-15
28*9-15
250-15
250-15
250-15
Tyre size(rear)
mm
15*41/2-8
16*6-8
16*6-8
16*6-8
18*7-8
18*7-8
21*8-9
21*8-9
21*8-9
Tilt of the mast,front/rear
%
5/10
5/10
5/10
5/10
5/10
5/10
5/10
5/10
5/10
Driving motor
kw
5
5
5
9
9
9
18
18
19
Lifting motor
kw
4.5
4.5
4.5
7.5
9
9
16.5
25
25
Battery
V/AH
60/120
60/160
60/210
72/210
72/260
72/260
80/300
80/400
80/500
Max.driving speed (load/unload)
Km/h
10/11
9/10
9/10
9/10
10/10
12/13
12/13
12/13
12/13
Max.lifting speed(load/unload)
mm/s
220/230
200/200
180/200
210/230
200/300
200/300
280/300
270/300
250/280
Max.lowering speed(load/unload)
mm/s
550
450
450
450
450
450
450
450
450
Max.climbing ability(load/unload)
%
15/20
15/20
15/20
15/20
12/20
12/20
15/20
15/20
12/20
Net.weight
kg
1530
2100
2530
3150
4150
4400
6660
6850
7100
