MD BrandModel: CDD Series/Capacity:1000-3000kg/Max.Lift Height:1.6--6m
Stand on Type Electric Pallet Stacker Comfortable Operation Experience, Model:CDD Series,MOQ:1unit,Packing with Pallet,Delivery Time:After Payment 15days,Payment: 100% Payment before Shippment

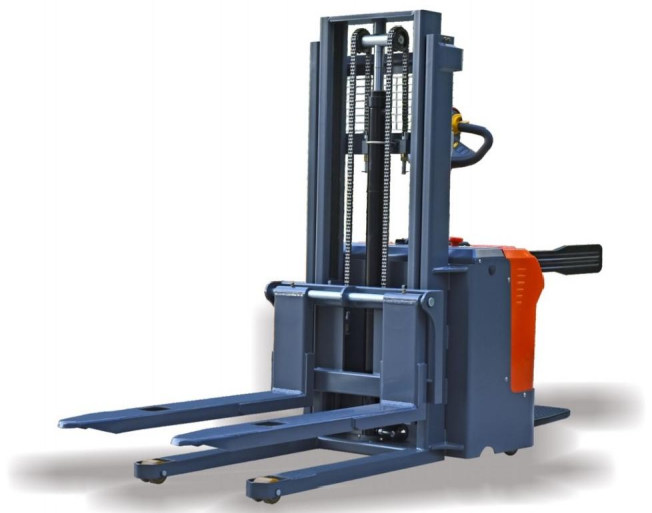

Stand on Type Electric pallet stacker
Stand on Type Electric pallet stacker,
1. The economical stacker is equipped with a pedal, which improves the operator's working comfort.
2. Floating support is set in the drive system, and balance wheels are configured around the rear of the body to ensure the stability of vehicle operation.
3.CURTIS controller, with stepless speed regulation and reverse braking function.
4. 12C/12J heavy duty door frame double oil cylinder, standard protection arm.
|
MODEL |
CDD2016T/CDD2020T/CDD2025T/CDD2030J/CDD2035T |
|
Capacity:kg |
1500/2000 |
|
Max.lift height:mm |
1600/2000/2500/3000/3500 |
|
Load center:mm |
550 |
|
Fork length:mm |
1150 |
|
Fork outer width:mm |
685/550 |
|
Lift motor:kw |
2.2 |
|
Drive motor:kw |
2.2 |
|
Battery:V/AH |
24/210 |
|
Brake |
Electromagnetic braking |

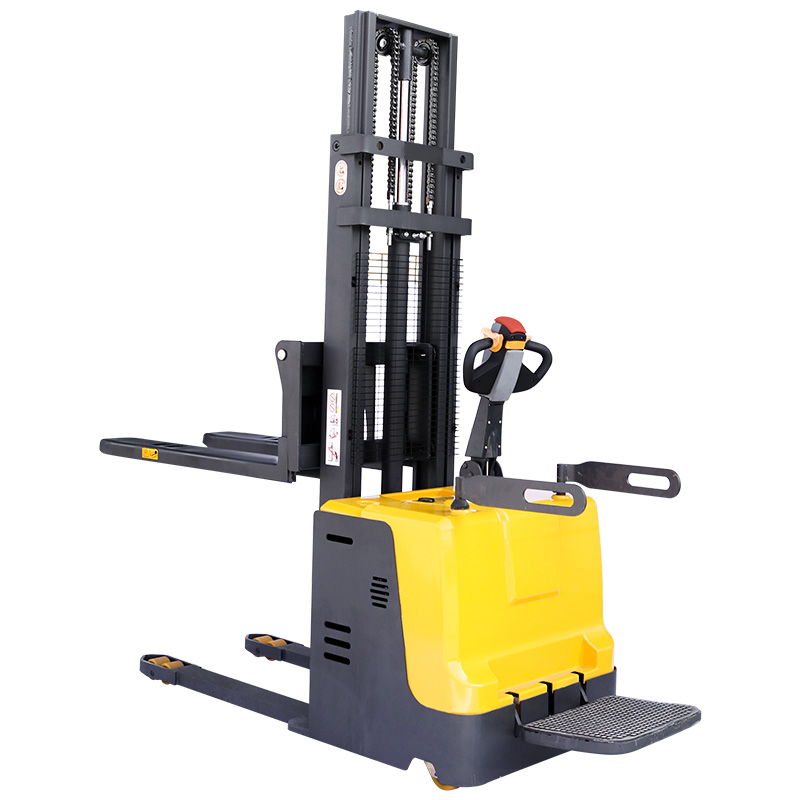

Economic Stand on Type Electric pallet stacker
1. The economical stacker is equipped with a pedal, which improves the operator's working comfort.
2. Floating support is set in the drive system, and balance wheels are configured around the rear of the body to ensure the stability of vehicle operation.
3.CURTIS controller, with stepless speed regulation and reverse braking function.
4. 12C/12J heavy duty door frame double oil cylinder,Solid manganese steel legs，protective arms are optional.
https://youtube.com/shorts/rkZWJ-BpQ0U?si=KX2Nl1tGBqRX474t|
MODEL |
CDD1516TJ/CDD1520TJ/CDD1525TJ/CDD1530TJ/CDD1535TJ |
|
Capacity:kg |
1500 |
|
Max.lift height:mm |
1600/2000/2500/3000/3500 |
|
Load center:mm |
550 |
|
Fork length:mm |
1000 |
|
Fork outer width:mm |
685/550 |
|
Lift motor:kw |
2.2 |
|
Drive motor:kw |
1.3 |
|
Battery:V/AH |
48/85 |
|
Brake |
Electromagnetic braking https://youtube.com/shorts/yUR__Sqk5As?si=UWfqjAX5i68RkyRB |
