MD Brand,Model: MD Brand,Model: CDD Series,Capacity:1000-2000kg,Max.Lift Height:1.6--4.5m
MD Brand,Shipping Term:EXW,FOB,CIF ,DDP,MOQ:1Unit,Packaging:Bubble Wrap and Pallet,Delivery time:After Payment 15days.

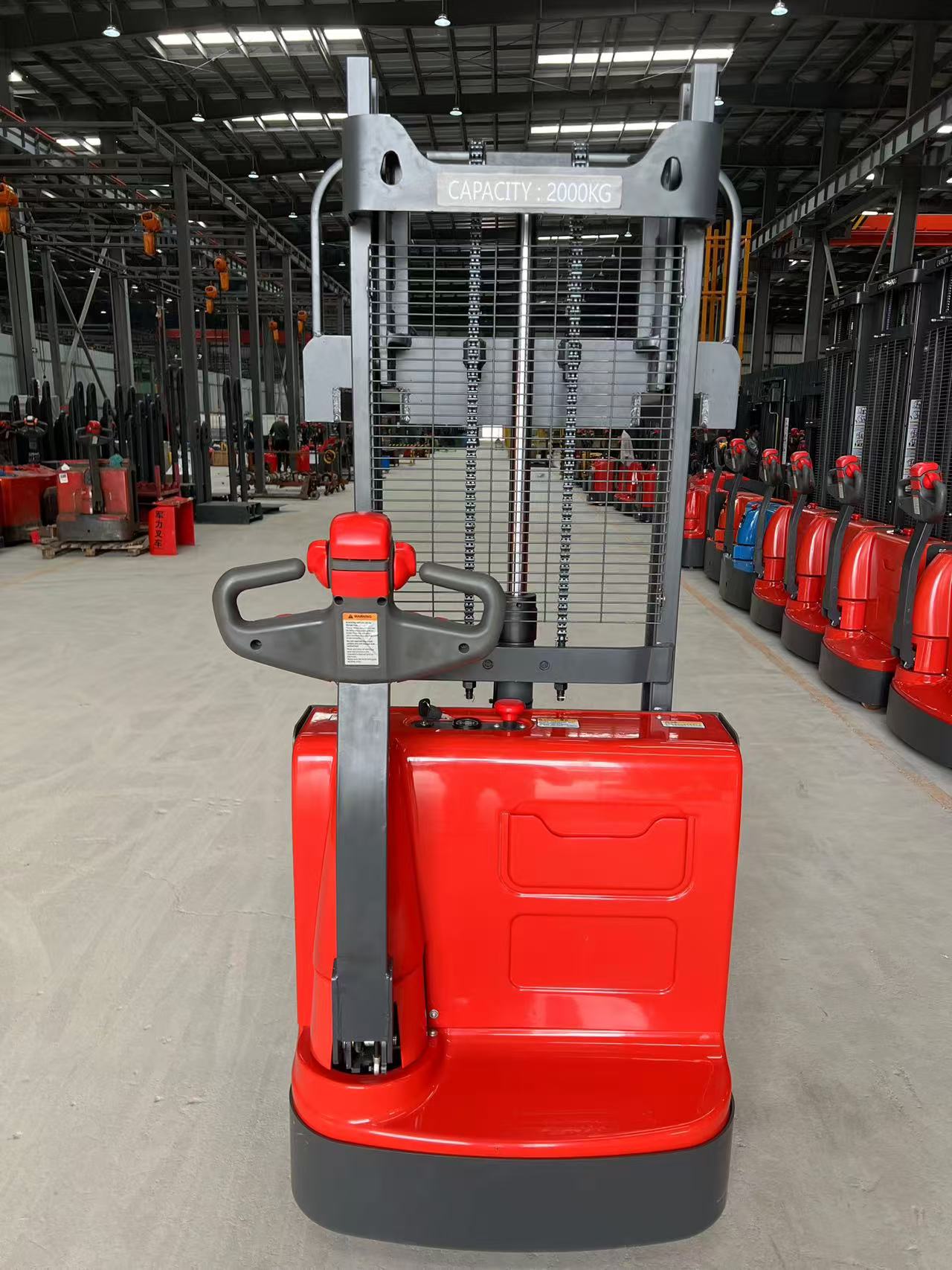

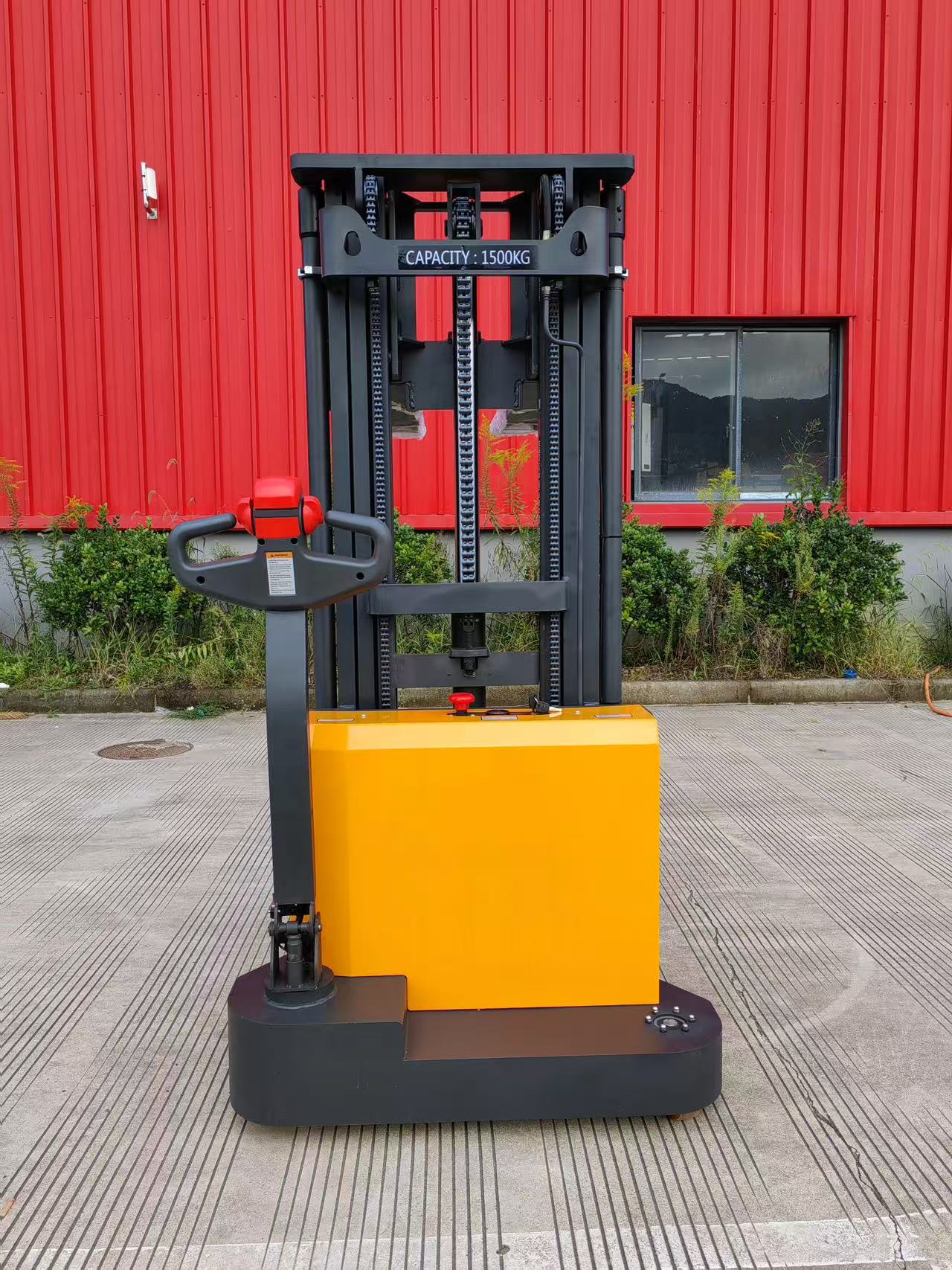

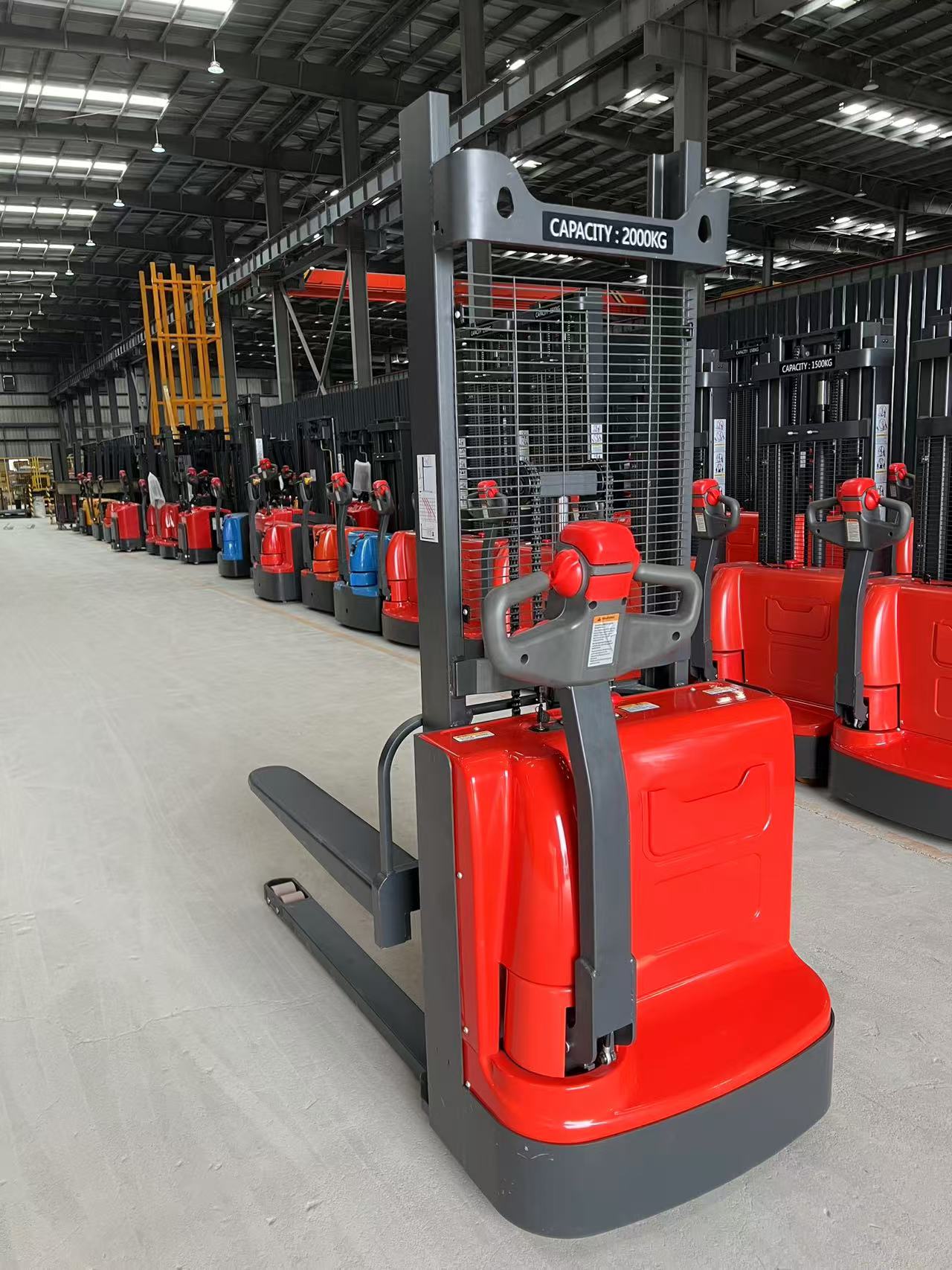

Walkie Electric Pallet Stacker
Walkie Electric Pallet Stacker
1. Side drive design, effectively reduce the operation channel, small turning radius, better vision, suitable for small space operation.
2. Designed for walking vehicles, the extended handle is ergonomic and comfortable to operate.
3. Equipped with high-power and high-performance lifting pump station, to ensure that the cargo lifting balance and powerful.
4. An emergency reverse switch is installed at the end of the handle to prevent the operator from being harmed when the vehicle is backing out of control.
5. 12C/12J heavy duty gantry solid manganese steel legs, high power 48V DC brushless motor drive.
|
MODEL |
CDD1516S/CDD1520S/CDD1525S/CDD1530S/CDD1535S/CDD1545S |
|
|
CDD2016S/CDD2025S/CDD2030S/CDD2035S/CDD2045S |
|
Capacity:kg |
1500/2000 |
|
Max.lift height:mm |
1600/2000/2500/3000/3500/4500 |
|
Load center:mm |
550 |
|
Fork length:mm |
1150 |
|
Fork outer width:mm |
685/550 |
|
Lift motor:kw |
2.2 |
|
Drive motor:kw |
1.3 |
|
Battery:V/AH |
48/65 |
|
Brake |
Electromagnetic braking https://youtube.com/shorts/Jx6uZZpnCX0?si=-dxqwvlPWzksx9lX |
